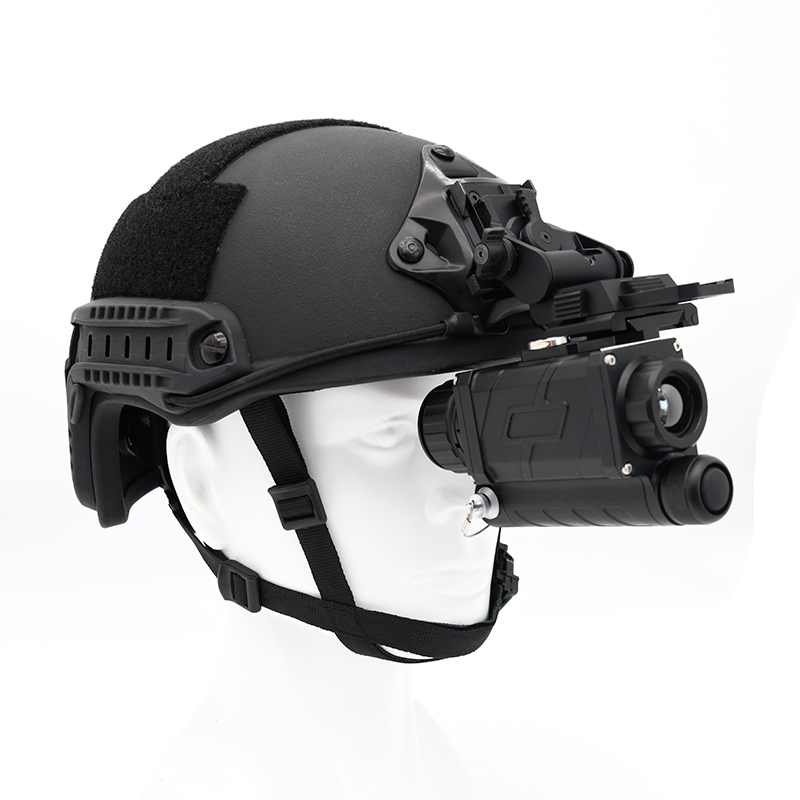

Infrared Head Mounted
| Detector Type | UnCooled VOx FPA |
| Resolution | 640 x 512 px |
| Spectral Range | 8 to 14 μm |
| Pixel Pitch | 12μm |
| Frame Rate | 50Hz |
| NETD | ≤40mk |
| Polarity | White-Hot/Black-Hot/Rainbow/Iron/Green |
| Focus Mode | Manual focus |
| Focus Range | 1m~∞ |
| IR Len | f=19mm,F#1.0 |
| FOV | 22.8°×18.3° |
| E-Zoom | 1~8x |
| Detection Human(1.7×0.5m) | 700m |
| Detection Vehicle(3.0×1.5m) | 2100m |
| Recognize Human(1.7×0.5m) | 230m |
| Recognize Vehicle(3.0×1.5m) | 700m |
| Battery | 3.7V 3400mAh(1×18650 Li-ion) |
| Average Power | ≈2.7W |
| Operate Time | ≈4.6h |
| Protection Level | IP66 |
| Operating Temperature | -30°~+55° |
| Storage Temperature | -40°~+60°(No condensation) |
| Dimensions(Length) | 143mm |
| Dimensions(Wide) | 60mm |
| Dimensions(Hight) | 85mm |

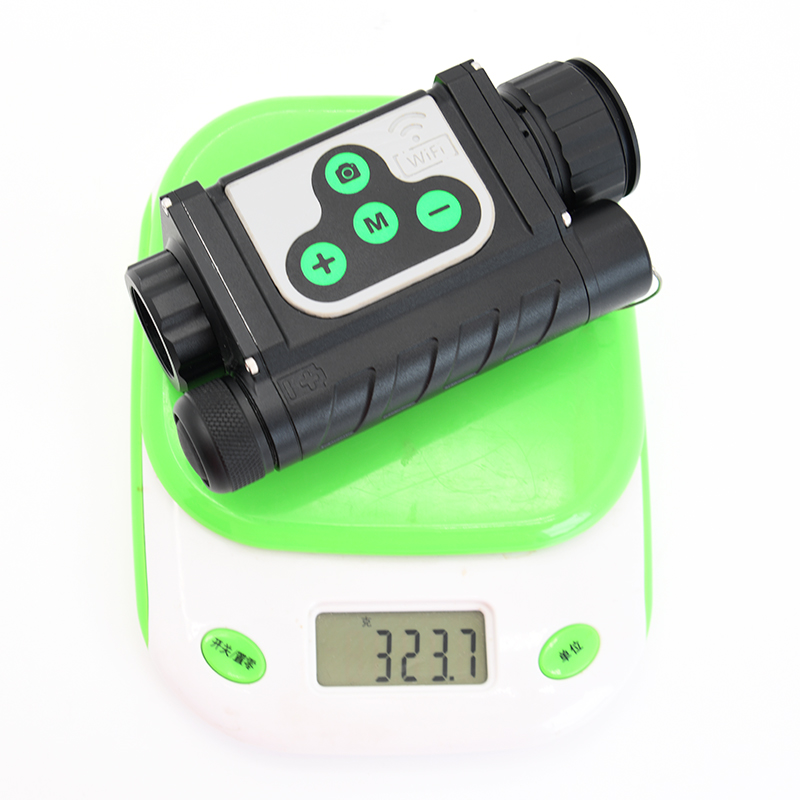

| Weight | ≈430g (including battery) |
