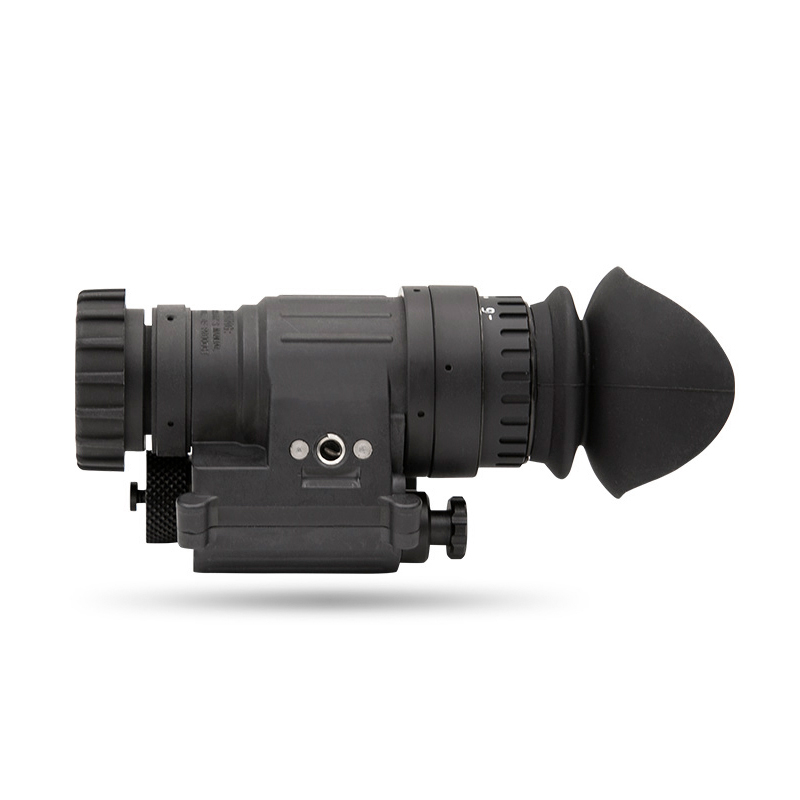

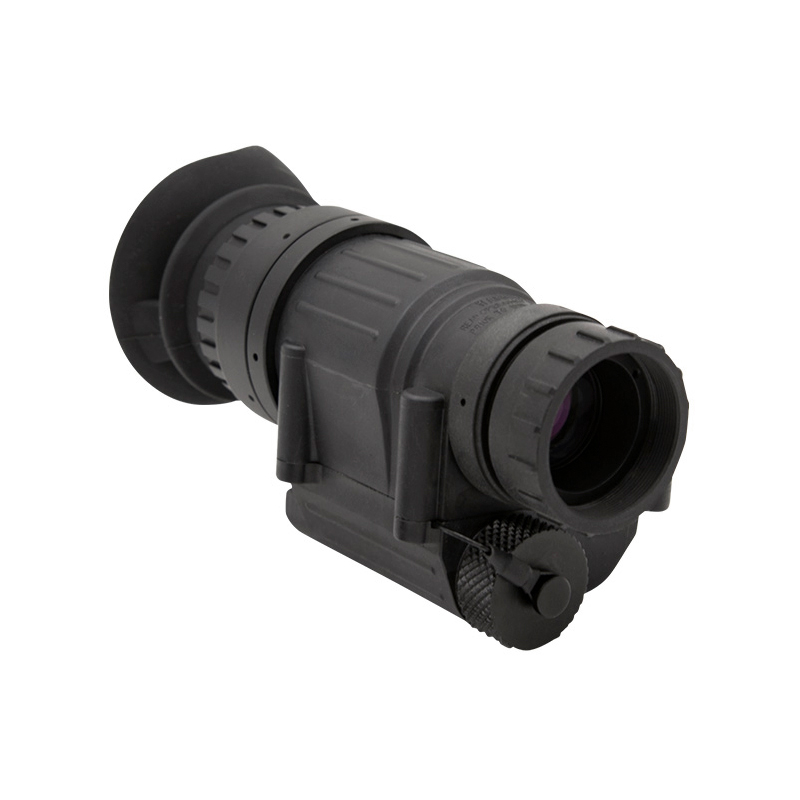

PVS-14 Gen3 Night Vision Monocular
| MODLE | MH-861 |
| Image intensifier | EU Gen3 |
| Magnification | 1x |
| Resolution ( lp/mm) | 57-64 |
| S/N（dB） | 20-25 |
| MTTF | 10,000 |
| FOV（degree） | 40+/-2 /50+/-2 as optional |
| Detection distance（M） | 180-300 |
| Reticle | Internal（optional） |
| Diopter range | +5/-5 |
| Optical system | F1.2, 25mm |
| Coating | Multilayer broadband coating |
| Distance range（M） | 0.25--∞ |
| BSP | Yes |
| Flip-up ,off | Yes |
| Flip-down, on | Yes |
| Materials | plastic |
| BatteryVoltage | 2.6-4.2V |
| Battery type | CR123(A)x1 |
| Battery life（H） | 80 (IR OFF) 40 (IR ON) |
| Temperature range（℃） | -40/+50 |
| Humidity range | 5%-98% |
| Waterproof | IP65（IP67 optional） |
| Weight（no battery） | 240g |
| Dimensions（mm） | 110*65*45 |
MH-861 night vision is a new product developed based on the latest photoelectric technology with a field of view of 50 degrees. The imaging is clear, the operation is simple. The magnification can be changed by replacing the objective lens. The night vision device has a built-in infrared illuminator and an auto-gain system.
The product has strong practicability and can be used for military observation, border and coastal defense reconnaissance, public security surveillance, evidence collection, customs anti-smuggling, etc. in the night. It is good equipment for them.
