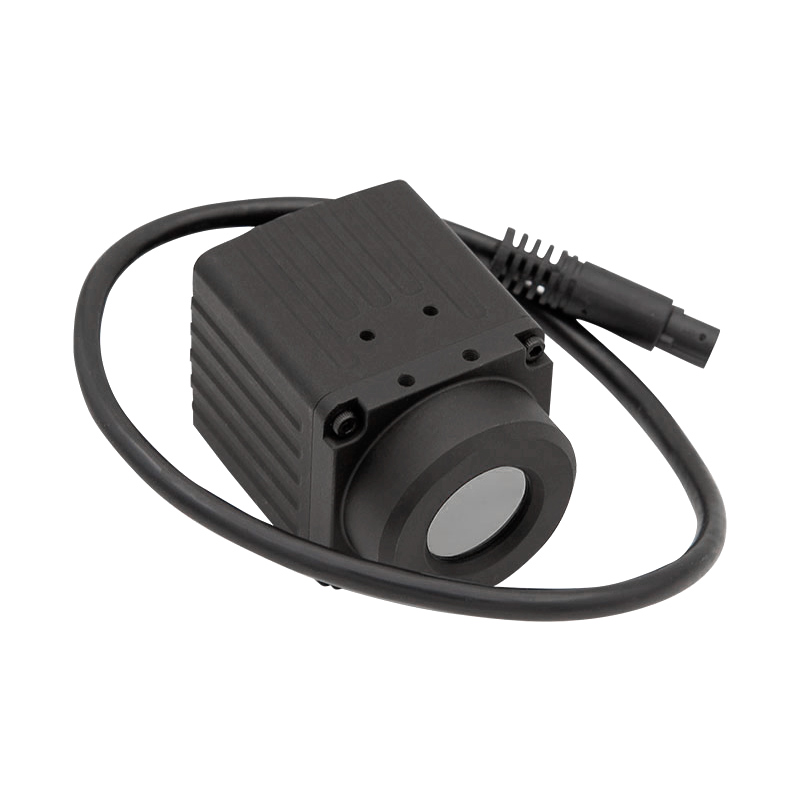

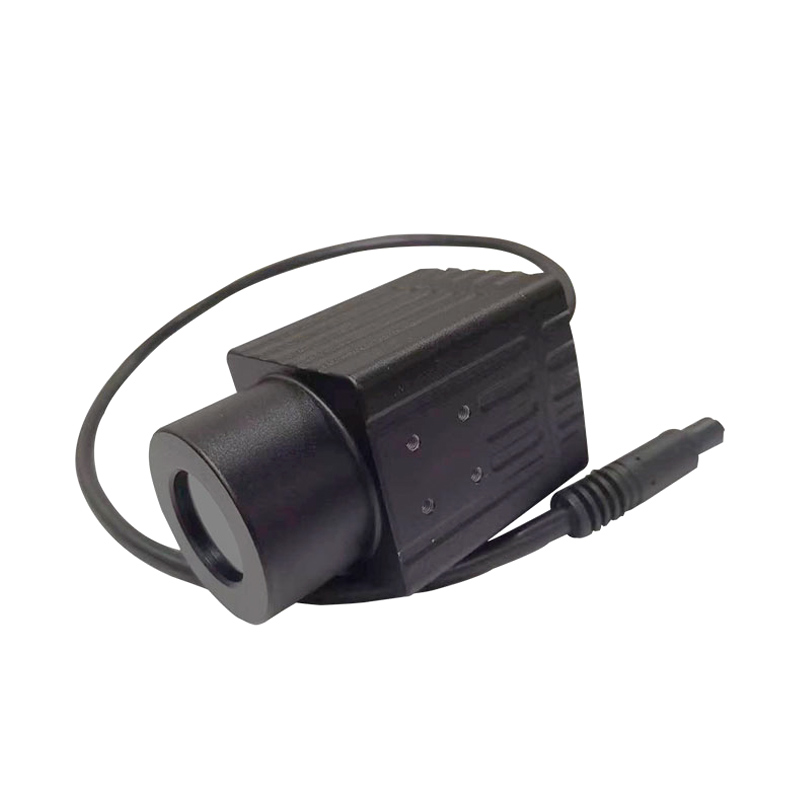

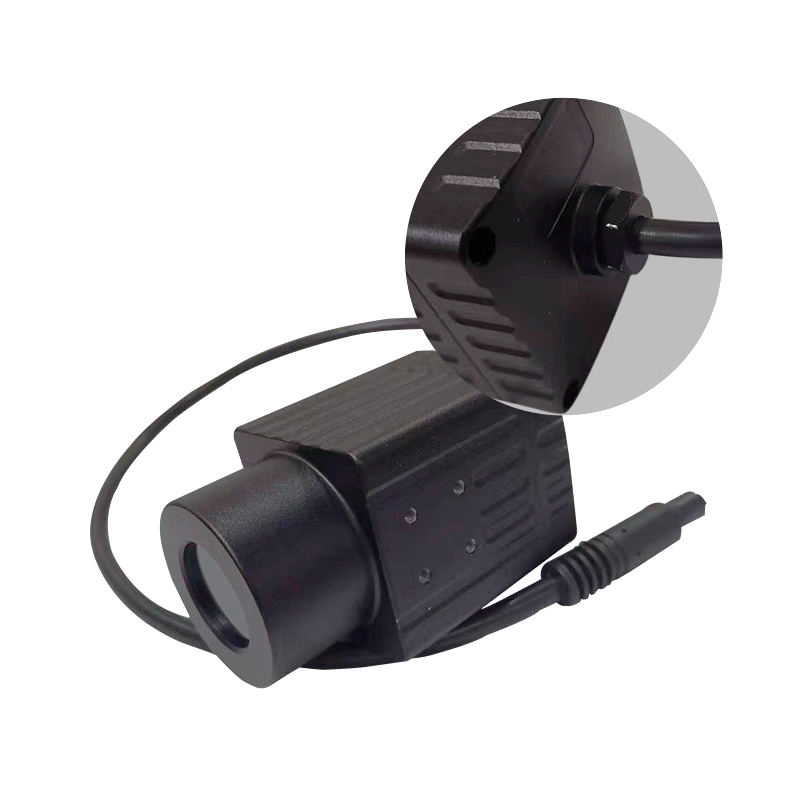

Driver-640 Driving Assistant Thermal Car Camera
| Model | Driver-640 |
| Infrared Camera Parameters | |
| Detector type | Vox Uncooled thermal detector |
| Respond band | 8~14um |
| Package form | ceramic package |
| NETD | ≤ 50 mK @F1.0, 300K |
| Resolution | 640*512px |
| Pixel pitch | 12 μm |
| Focus length | 16 mm/F1:1.0 |
| FOV | 28°*22° |
| Frame Rate | 50 fps |
| Image Parameters | |
| Non-Uniformity Correction | Shutter automatic correction technology |
| Image Enhancement | Yes |
| Noise Reduction | Yes |
| Bad spot repair | Yes |
| Performance and interface | |
| Shock Resistance | 750 g/1 ms |
| Video Output | Analog Video CVBS |
| Window Heating | |
| System parameters | |
| Rated Voltage | DC 5 V |
| Operating temperature | -30°C~70°C |
| storage temperature | -40°C~80°C |
| Size | 42*42*70mm |
| IP Level | IP67(sealed housing) |
| Operating Range | |
| Detection Range | <2050m(Vehicle) <1600m(human) |
| Identification range | <510m(Vehicle) <400m(human) |
| AI Identification range | >150m(Vehicle) >90m(human) |
| certification | CE, FCC, EMC, ROSH, quality inspection report |
The Driver-640 driving assistant thermal car camera can recognize people who walking front by car and trans to screen. Even if in midnight or bad weather, which can enhance the rate of driver’s safety. If you chose Thermal Imaging Obstacle Avoidance System, you would have an visible eye at night when you are driving through the system, it can effectively eliminate strong light effect, particularly avoid rain, snow, dust, which bringing optical effects.
