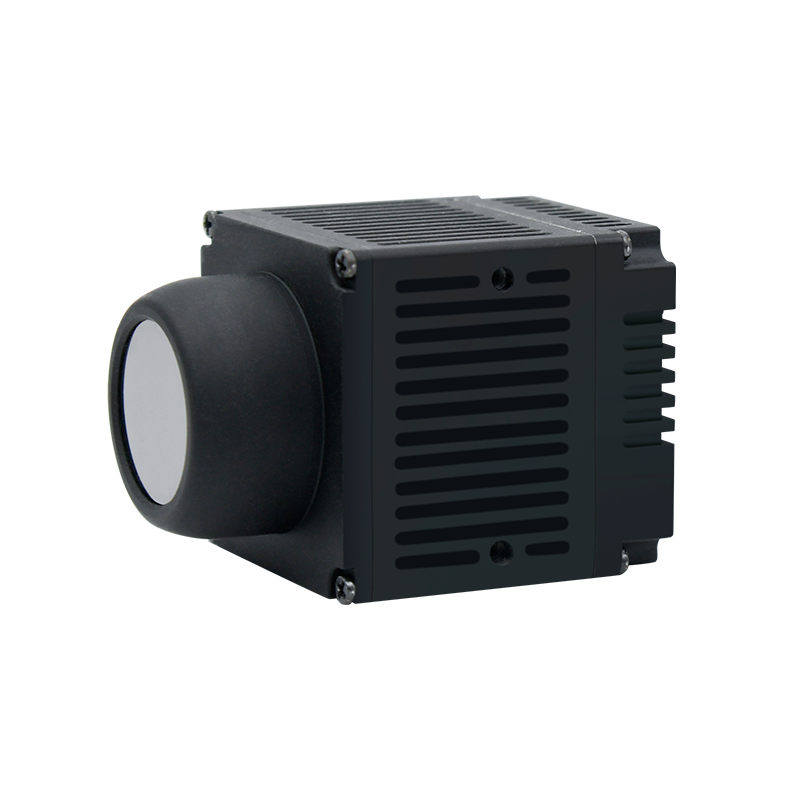

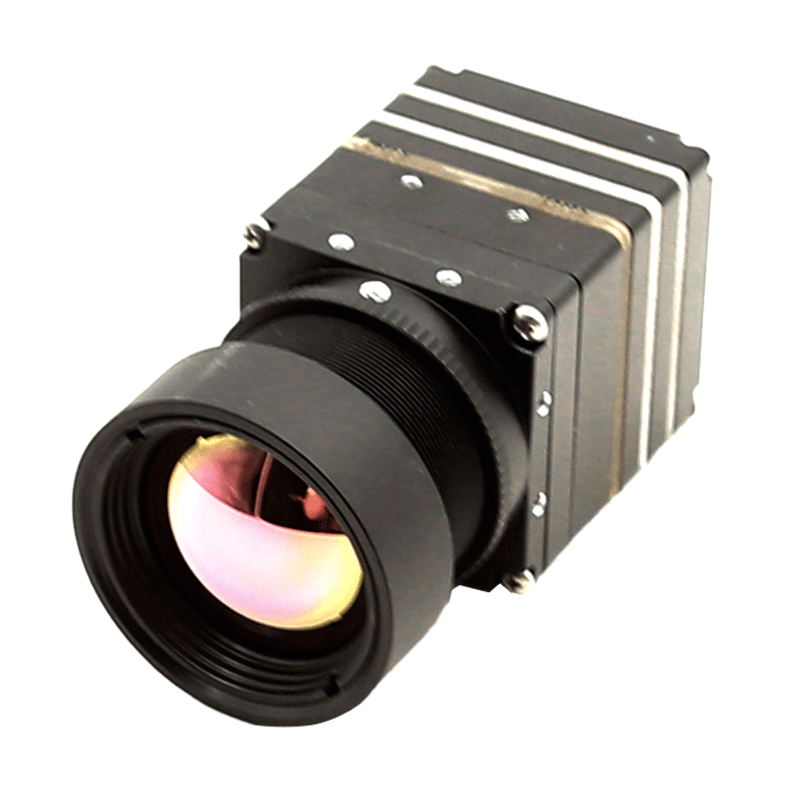

MH-9-18mk NETD18mk Thermal Module
| Model | MH-9-18mk |
| Detector type | Uncooled amorphous silicon FPA (No-TEC） |
| FPA format /Pixel pitch | 384*388px@17um |
| NETD | ≤18mk at f/1.0 300K |
| Frame rate | 50Hz |
| Spectral range | 8~14um |
| calibration | With shutter |
| Start-up time | ＜3s |
| Image enhancement | DDE |
| Image display resolution | 768×576 |
| Image frame rate | 50Hz（PAL） |
| Lens | 17mm,19mm ,25mm,35mm, 50mm |
| Polarity | Black hot/white hot/color |
| Zoom | 1x, 2x, 4x |
| Brightness | Auto+manual |
| Contrast | Auto+manua |
| Image reversal | Horizontal/Vertical |
| Crosshair | YES |
| Operation Voltage range | DC: +2.5V~+15V |
| Power consumption | ＜0.9W |
| Reverse connect protection | YES |
| Over/Under Voltage protection | YES |
| Operation tempreture range | Commercial :-20ºC~+60ºC | Option: -40ºC~+60ºC |
| Non-operation tempreture range | -45ºC~+65ºC |
| Humidity | 5%~95% Non Condensing |
| Weight | 75g(without lens) |
| PCB size | 44.5X44.5X34mm |
| External Power supply | YES |
| Digital Video output | LVDS |
| Analog video output | YES |
| Communication | RS-232/RS-485 |
MH-9-18mk thermal imaging core is a small size, very low power consumption, NETD18mk uncooled infrared thermal imaging module, it has the smallest NETD in China, which makes the core has the best images.
Its compact design makes it completely suitable for OEM assembly and integration.

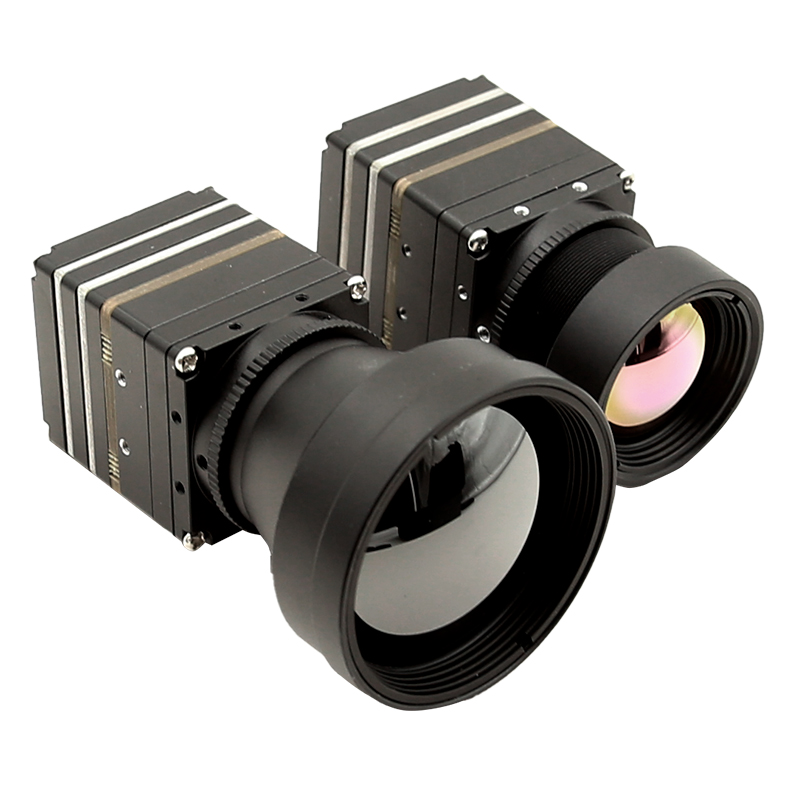

With a variety of configurations and optional lenses, MH-9-18mk thermal imaging core can meet almost all application requirements.
MH-9-18mk thermal imaging core is most suitable for applications requiring portable, small, low-power and low-cost thermal imaging movement.
