MH-HS8 Holographic sights
| Model | MH-HS8 |
| Projection method | FullNo parallax Reverse projection |
| Magnification | 1x |
| Distance of pupil | Unlimited |
| Material | Optical solid glass |
| Dimensions | 30x23+/-1mm |
| Glass coating | Anti-glare (MIL-0-13830A)Antifogging |
| Fov（100mm） | >15（degree） |
| Graduation type | Red，infrared Reverse projection(NV) |
| Daytime brightness adjustment | 146000:1 20 steps |
| Nighttime brightness adjustment | 1280:1 10 steps |
| Battery type | CR123(A)x1 |
| Battery life | >550H (daytime mode step 2) |
| Low batteryindicator | Power Low than20%,flash cursor |
| Auto shut off | 8H/4Hno operation auto shut off(can be set) |

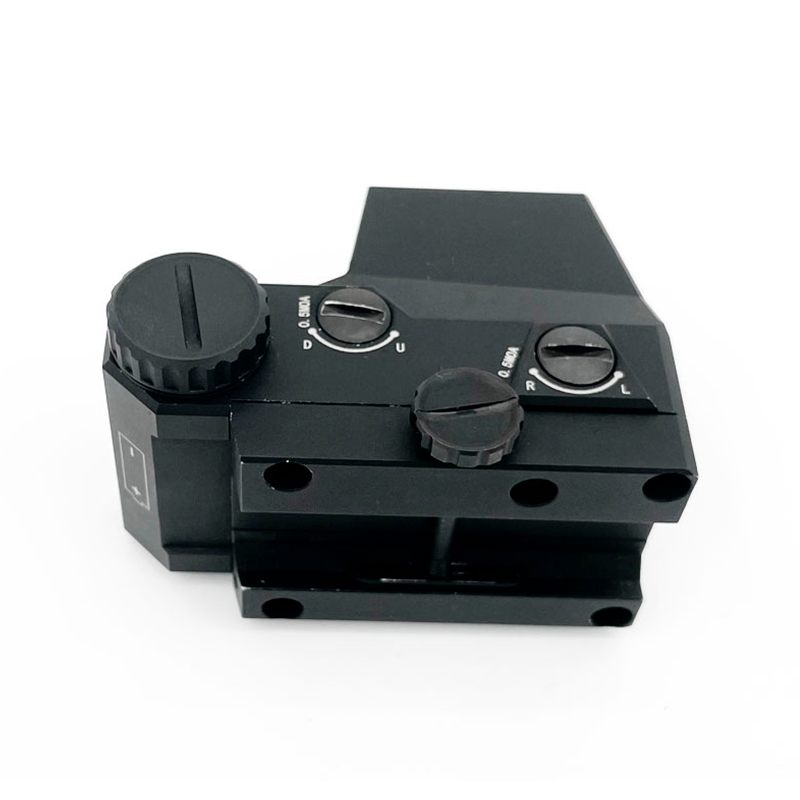

| Mil range | +/-40MOA |
| Minimum mil | 1/2MOA |
| Mountting Fixture | MIL-STD-1913 |
| Lock | screw |
| Remountting accuracy | 2MOA |
| Dimensions | <95x55x65mm |
| Weight(No battery) | <240g |
| Environment specification | MIL-STD-810F |
| Environment rating | IP65（IP67 optional） |
| Temperature(℃) | Operating：-40~+65 Storage：-50~+75 |
Holographic sights is Sichuan university of electronic science and technology cooperation with Electronic company based on the United States EOTECH products research and development of a high performance、High precision dual laser holographic sights day and night.It has the advantages of small volume, light weight, easy to use, dual use-day and night, no parallax, and so on, is the best choice of the short weapons quickly aim.It’s very suitable for public security, customs, armed police special security applications.
