MH-69-type 40mm night vision scope is equipped with the RPG7 and 69-1 40mm rocket launchers for use in night combat. MHNV scope gives the rocket launcher an angle and direction through the internal scale, and can be used for direct aiming and effective shooting at enemy tanks, armored vehicles, and concrete fortifications within a range of 100 to 500 meters.

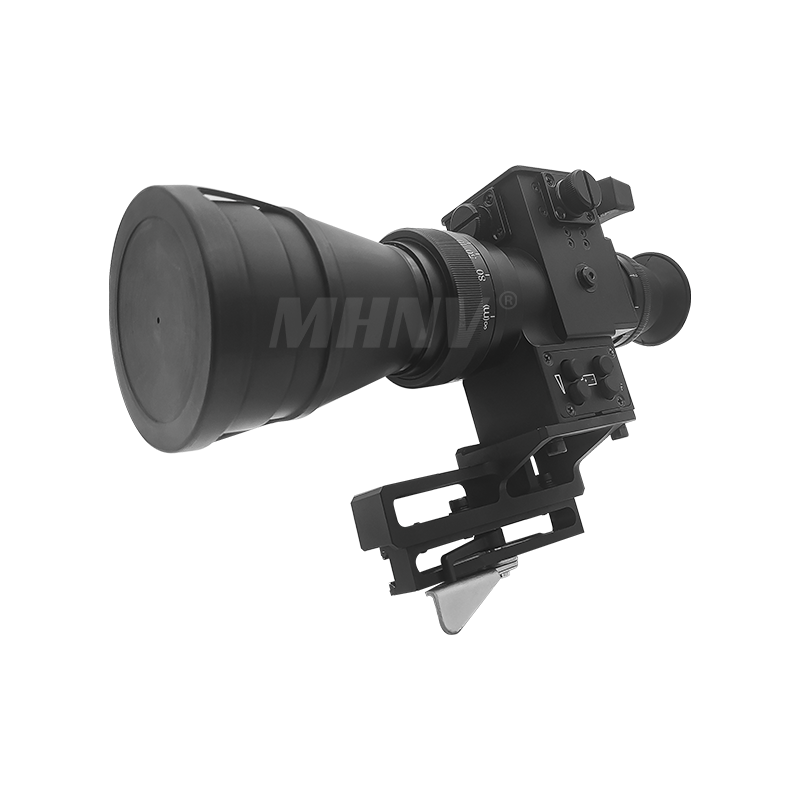

Product Name	MH-69-type 40mm Night Vision Scope
Magnification	4X
Field of view	10°
Exit pupil diameter	5mn
Exit pupil diameter	20mn
Resolution	(under the conditions of contrast 85% to 90%, illumination 1/10Lx) ≤1.7
	(under the conditions of contrast 35% to 40%, illumination 1/1000Lx) ≤3.4′
Zero position accuracy	≤0.7mil
Zero adjustment range	±12mil

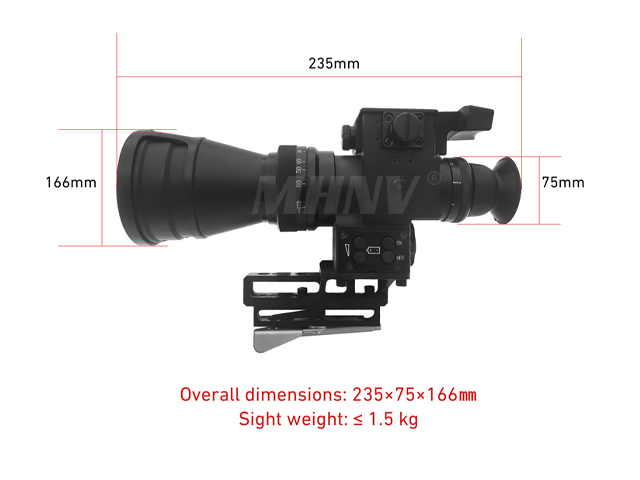

Overall dimensions	235×75×166㎜
Weight	≤ 1.5 kg
Continuous working time	≥ 30h
