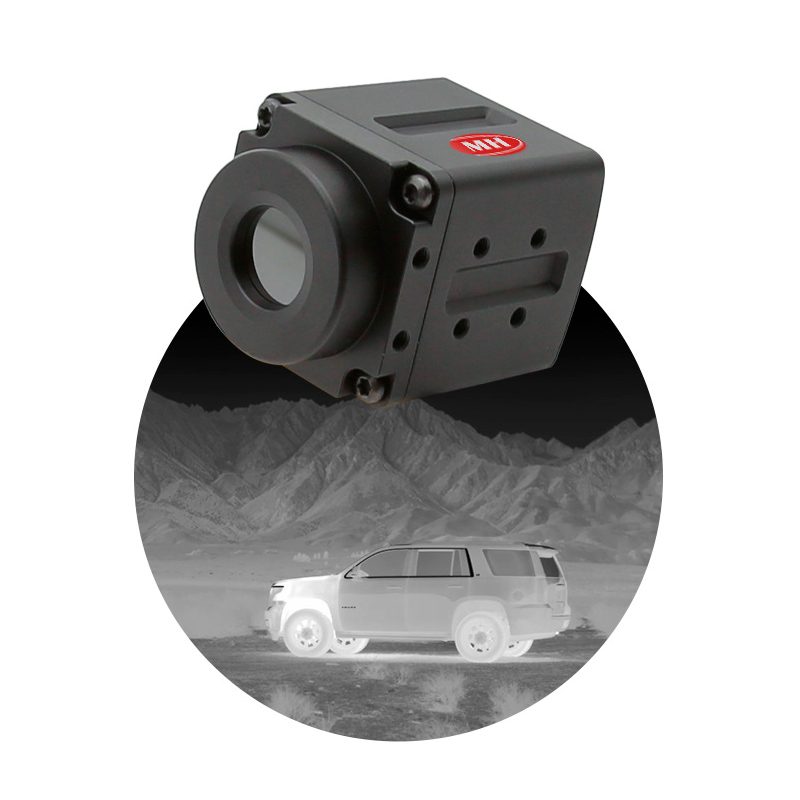

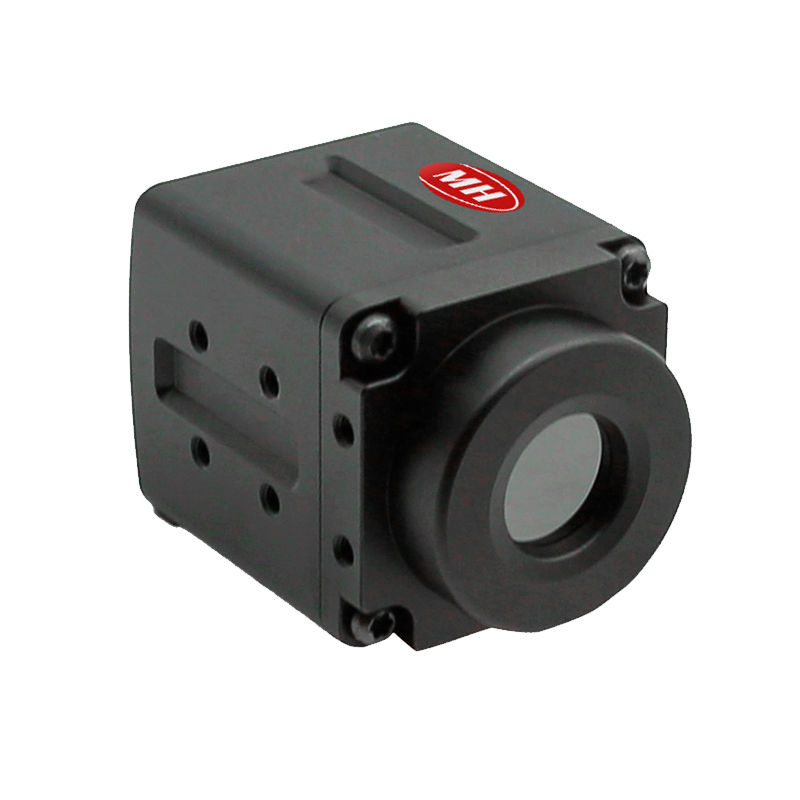

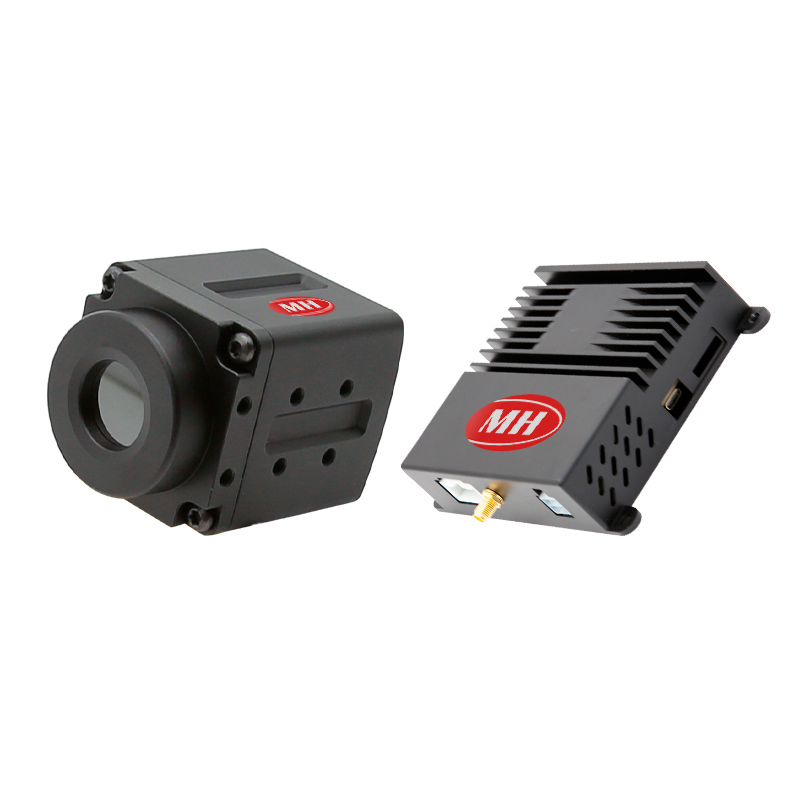

Driver-256 Driving Assistant Thermal Car Camera
| Model | Driver-256 |
| Infrared Camera Parameters | |
| Detector type | Vox Uncooled thermal detector |
| Respond band | 8~14um |
| Package form | Wafer packaging |
| NETD | ≤ 50 mK @F1.0, 300K |
| Resolution | 256*192px |
| Pixel pitch | 12 μm |
| Focus length | 10 mm/F1:1.0 |
| FOV | 18°*13° |
| Frame Rate | 25 fps |
| Image Parameters | |
| Non-Uniformity Correction | Shutter automatic correction technology |
| Image Enhancement | Yes |
| Noise Reduction | Yes |
| Bad spot repair | Yes |
| Performance and interface | |
| Shock Resistance | 25g/11ms |
| Video Output | UVC/AHD |
| Window Heating | Support (Start below 5°C, shut down above 7°C) |
| System parameters | |
| Rated Voltage | DC 5 V |
| Operating temperature | -30°C~70°C |
| storage temperature | -40°C~80°C |
| Size | 34*34*52mm |
| IP Level | IP67(sealed housing) |
| Operating Range | |
| Detection Range | <1280m(Vehicle) <1000m(human) |
| Identification range | <320m(Vehicle) <250m(human) |
| AI Identification range | >150m(Vehicle) >100m(human) |
| certification | CE, FCC, EMC, ROSH, quality inspection report |
High-brightness illumination of non-luminous heating objects.Anti-glare function.See clearly in complete darkness, dense fog,bright light or other inclement weather.The longer detection distance can reach more than 300m for vehicles and more than150m for people.IP67 protection level.
